Classic DOUBLE Pocket Door System - White Jambs

Imagine opening up and closing off different areas of your layout in an instant, with doors that are there when you need them, and slide into a pocket in the wall when you don’t. And because the doors slide into a pocket in the wall, the doors themselves do not take up valuable space in the room when they are open.

The Eclisse double sliding pocket door system can also be installed against an existing masonry wall by simply creating a false stud wall alongside the existing masonry one. All you need to do is to construct the frame in exactly the same way, still applying plasterboard to both sides of the frame for strength. By doing this you will only be adding 95mm or 100mm thickness to the existing wall. This is nothing compared to the space you will save by installing pocket doors instead of traditional hinged doors!

A quick word about your studwork

When you choose an ECLISSE pocket door system the first thing to consider is matching your stud thickness to the right ECLISSE pocket door thickness and the table below shows you how to do this. Why are you looking to match it up? Because when it matches up, plaster boarding the pocket and the rest of the wall is as quick and easy as it possibly can be.

We recommend that you use either timber or metal stud in the table below. These are the most readily available stud work sizes and to make life easier we make frames to match.

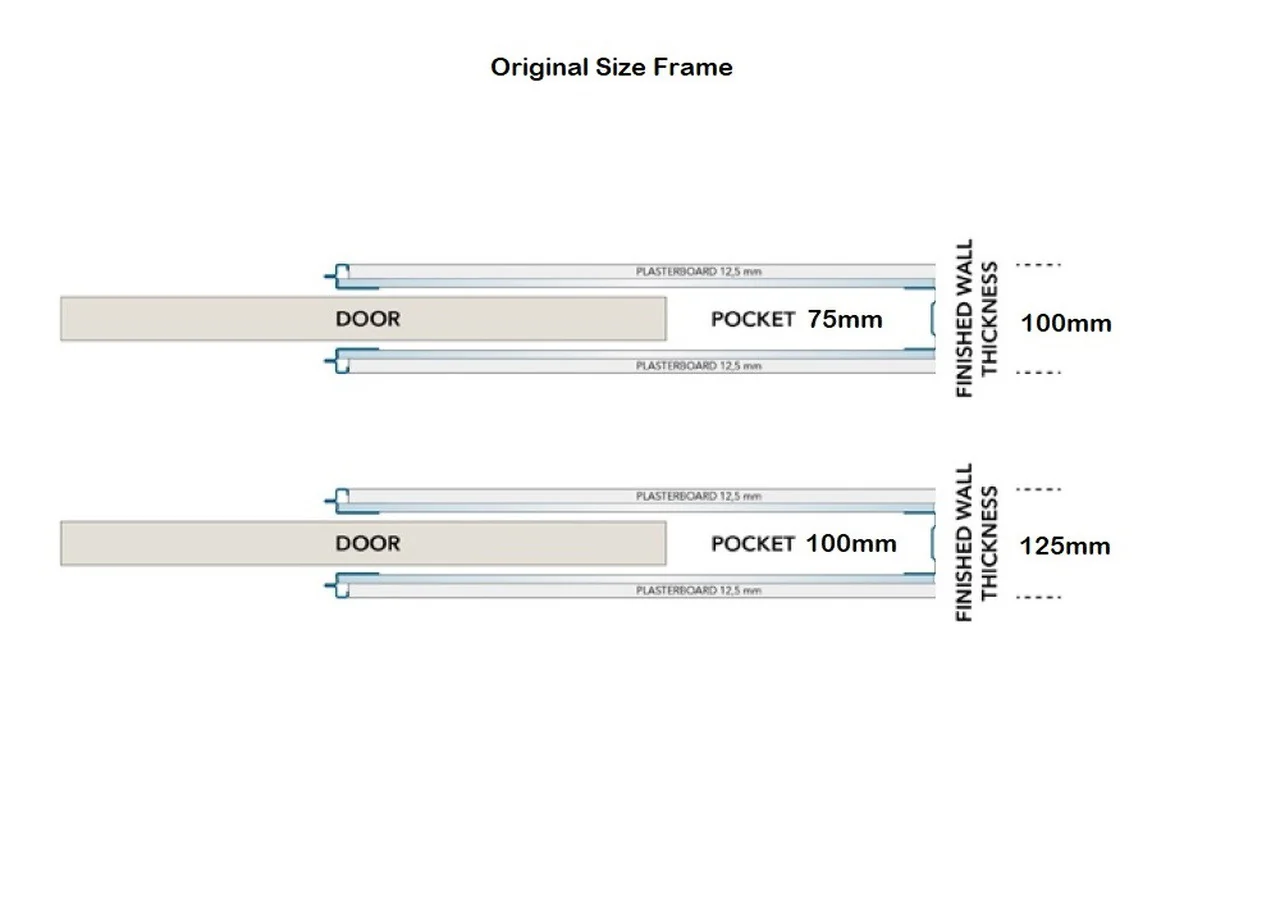

Timber Stud	Nominal Size	Actual Dimensions	Best Fit Eclisse Pocket Door System	Assemble frame to:	Plasterboard option for the pocket and for the stud work
CLS- Canadian Lumber Standard	3” x 2” / 75 x 50mm	63 x 38mm	95mm finished wall thickness	70mm pocket thickness	Click to see larger view
	4” x 2” / 100 x 50mm	89 x 38mm	115mm finished wall thickness	90mm pocket thickness	Click to see larger view
Scant/ construction timber	3” x 2” / 75 x 50mm	69/70 x 47*mm	95mm finished wall thickness	70mm pocket thickness	Click to see larger view
	4” x 2” / 100 x 50mm	94/95 x 47*mm	125mm finished wall thickness	100mm pocket thickness	Click to see larger view

*This dimension can vary

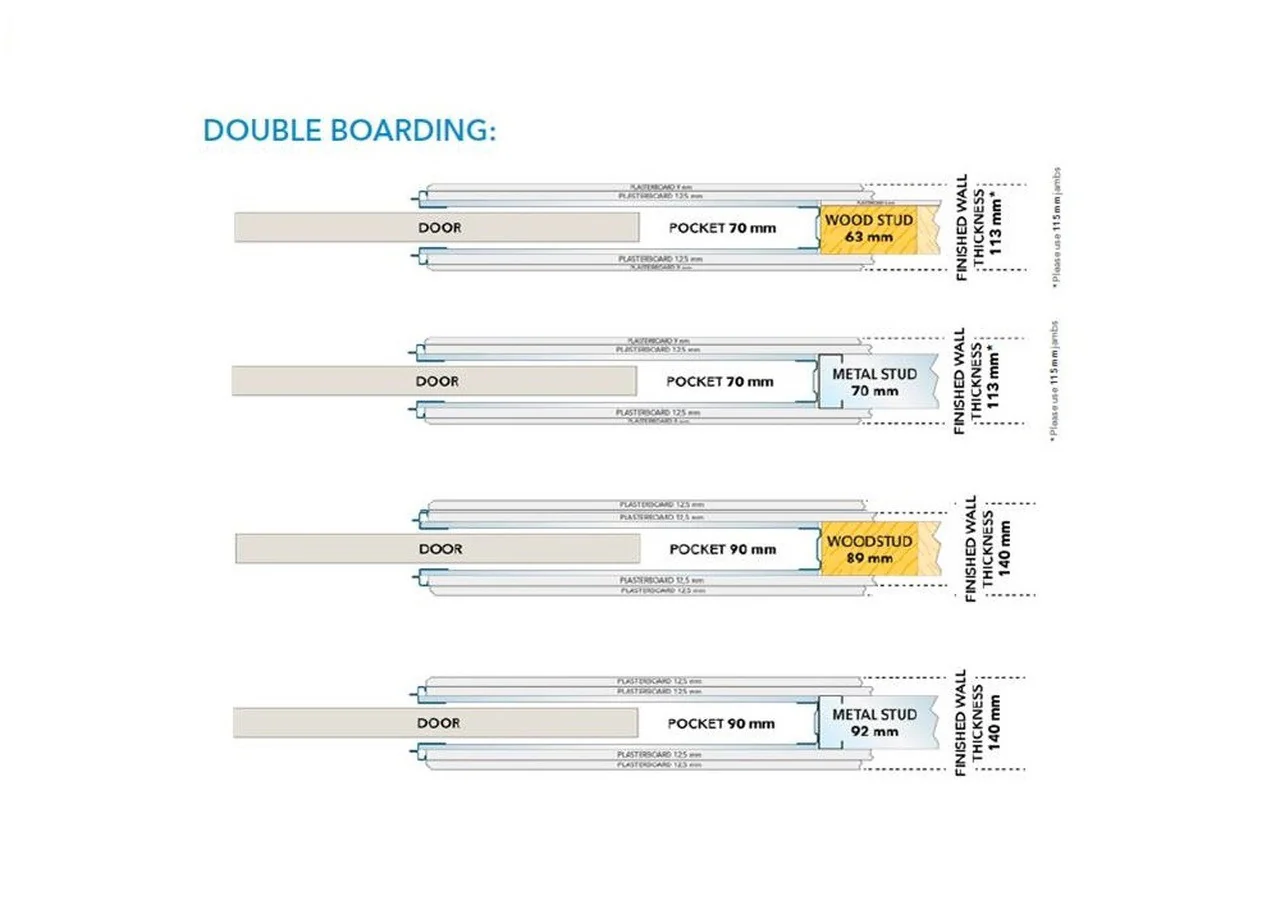

Click here to see full version of this table including metal stud and more options for plaster boarding as well as double boarding



Look at the relevant Technical Spec to determine your overall frame size/door panel size

Our pocket door systems come in standard overall frame sizes designed to perfectly fit a wide range of standard door panel sizes. Our technical specs give you all the information you need to decide on your choice of frame. You need to make sure you have enough overall space to build the stud work to accommodate and install the overall frame. You can then look at the range of overall frame sizes that will fit into the space you have available and the technical spec will tell you the door panel sizes that the different frames will accommodate.

Technical Specs:

• Download

Other options:

• Need a non standard size? Call our friendly Customer Services Team on 0333 5770828 for a quote. Currently available in 100 & 125mm finished wall thickness other sizes coming soon.
• Need a wider passage width (i.e. opening)? Have a look at our telescopic pocket door systems.
